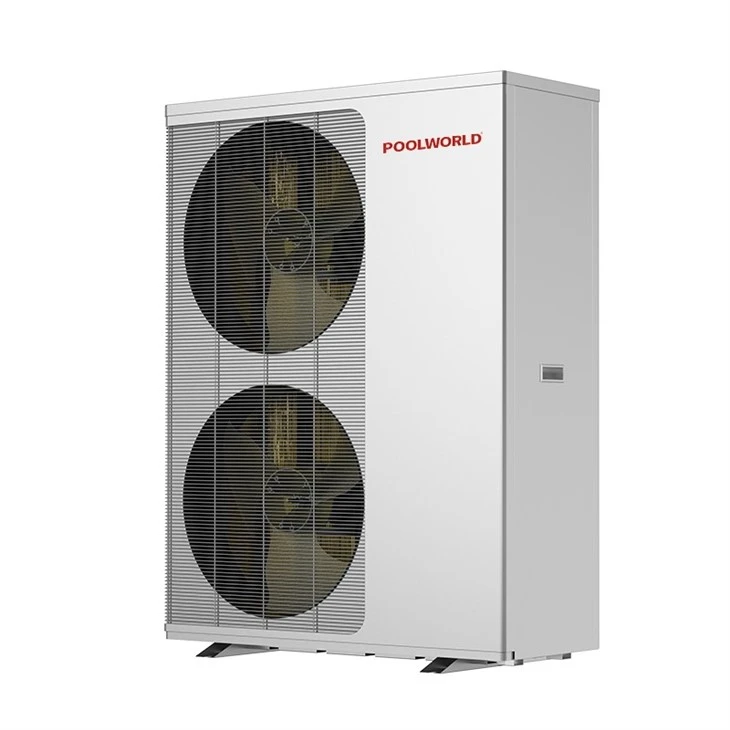

PoolWorld R290 Full DC Inverter Heat Pump is a monoblock unit, that integrates compressors, plate heat exchangers, water pumps, expansion tanks, and other components of internationally renowned brands into a compact structure, which is more convenient for installers to install than split heat pumps.
Zero Carbon Emission R290 Refrigerant
Heating Capacity 8.3KW ~22KW
Working Ambient Temps Range of -25 degree ~43 degree
Energy Level A+++ Tested by TUV
4.70 COP and 70 degree Outlet Water
Supports cascading of up to 8 units
CE, SG ready, ERP A+++, Keymark, MCS certificates, and BAFA list.
| PD30-CRL-DC-E/S | PD40-CRL-DC-E/S | PD50-CRL-DC-E/S | PD50-CRL-DC-E | PD60-CRL-DC-E | |
| Heating Condition - Ambient Temp. （DB/WB）: 7/6 degree , Water Temp. （In/Out）:30/35 degree | |||||
| 3.3~8.3 | 4.5~11.4 | 5.9~14.8 | 5.9~14.8 | 8.8~22.0 | |
| 0.64~2.18 | 0.85~2.95 | 1.13~3.83 | 1.13~3.83 | 1.68~5.77 | |
| 3.81~5.17 | 3.86~5.29 | 3.86~5.22 | 3.86~5.22 | 3.81~5.24 | |
| DHW Condition-Ambient Temp. （DB/WB）: 7/6 degree , Water Temp. （In/Out）:15/55 degree | |||||
| 3.7~7.4 | 5.2~10.2 | 6.6~13.2 | 6.6~13.2 | 7.8~17.6 | |
| 0.79~2.10 | 1.10~2.87 | 1.41~3.73 | 1.41~3.73 | 1.67~5.01 | |
| 3.52~4.69 | 3.55~4.71 | 3.54~4.67 | 3.54~4.67 | 3.51~4.66 | |
| Cooling Condition - Ambient Temp. （DB/WB）:35/24 degree ,Water Temp.（In/Out）:12/7 degree | |||||
| 2.4~5.8 | 3.3~8.2 | 4.3~10.8 | 4.3~10.8 | 6.2~15.3 | |
| 0.79~2.19 | 1.08~3.07 | 1.39~3.99 | 1.39~3.99 | 1.99~5.60 | |
| 2.65~3.04 | 2.67~3.06 | 2.71~3.10 | 2.71~3.10 | 2.73~3.12 | |
| ErP Level (35 degree ) | A+++ | A+++ | A+++ | A+++ | A+++ |
| R290 | |||||
| 230V/1Ph/50Hz/60Hz | 380V/3Ph/50-60Hz | ||||
| DN25 | DN25 | DN25 | DN25 | DN25 | |
| 9 | 9 | 9 | 9 | 12 | |
| Less than or equal to 47 | Less than or equal to 50 | Less than or equal to 52 | Less than or equal to 52 | Less than or equal to 53 | |
| 105 | 115 | 160 | 160 | 165 | |
| 1080×460×820 | 1080×460×960 | 1080×480×1060 | 1080×480×1060 | 1080×480×1372 | |
| -25~43 degree | |||||
| 20~65 degree （DHW ） | |||||
| 20~70 degree （Heating） | |||||
| 7~35 degree （Cooling） | |||||
